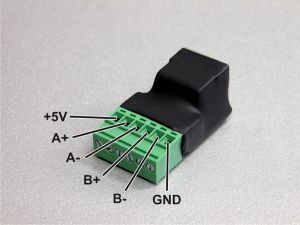

Differential-differential encoder interface DD1 is used for connection of differential (optionally single-ended) incremental encoder to DC servo drive DCS-3010 or to DC servo drive with analog output DS-100-A.

Incremental encoder connects on adapter DD1 via six-pole connector. To minimize the influence of electromagnetic interferences, it is recommended to use shielded Cat 5e network cable for connection between encoder interface DD1 and DC servo drive.

DD1 User's manual
